Product Description

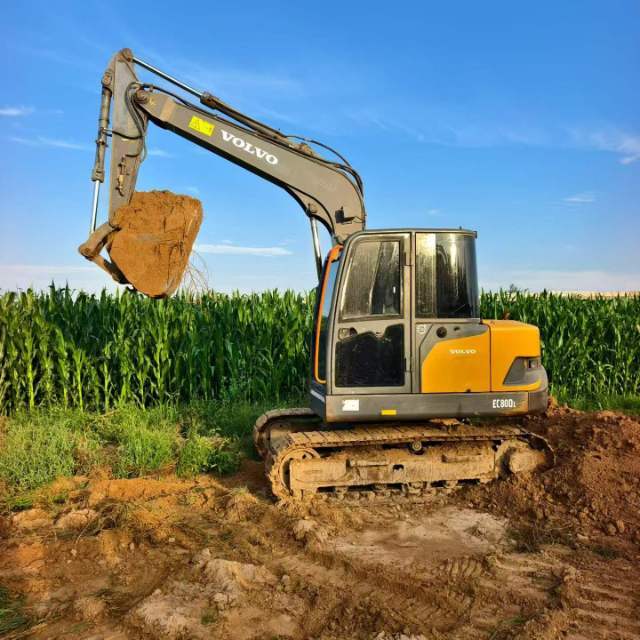

This 2020 Volvo EC80D PRO compact excavator is available from Hebei, China. With low operational hours, this machine presents an excellent opportunity for contractors seeking reliable performance in tight-access applications.
The unit features fully functional air conditioning and has been maintained to OEM standards. The machine retains its original factory components throughout, with no evidence of fluid leaks—a testament to proper operational care. All systems have passed pre-sale inspection, confirming ready-to-work condition.
- Year: 2020
- Model: Volvo EC80D PRO
- Operating weight class: 8-ton
- Condition: Well-maintained, inspection-ready
- Climate control: Operational A/C system
- Location: Hebei Province, China
Ideal for urban construction, utility work, and landscaping projects where maneuverability and reliability are essential. Inspection welcome by appointment.
| Specifications | Value |
|---|---|
| No. | 1140024 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7,400 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D2.6D |
| Rated power (kw/rpm) | 43 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Turning torque (Nm) | 21.5 |
| Main overflow set pressure (Mpa) | 29.4 |
| Maximum flow of main pump (l/min) | 1 x 176 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Pilot pump flow (L/min) | 16 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 11.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2200 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Dodging plate width × height (mm) | 2300*470 |
| Maximum excavation radius of stop surface (mm) | 6270 |
